VVTi 1JZ Bolt-On Turbocharger Systems

Our location in Vancouver, Canada (along with our combined 20 years experience in turbocharger design and manufacturing) puts us at an advantage when it comes to developing a turbocharger for Toyota's VVT-I 1JZ engine found in JZX100 and JZX110 sedans. As these cars have been legal in Canada for some time, we have ample hands-on experience with these unique motors. With legal importation of these vehicles to the USA about to open up, all of North America will soon be able to enjoy these torquey and responsive straight 6's.

If you've been able to drive or even be a passenger in a VVT-i 1jz vehicle, you will understand how well the low and midrange power has been improved over the previous 1st generation 1jz. With the stock engine package however, this has come with a comparative reduction in top end power output.

Our aim at the beginning of the development of these turbochargers is simple: Develop upgrade turbocharger options that are well matched to the low and mid-range Volumetric efficiency of these engines. As with all our products, we aim to maximize value, while also allowing for full customization of your Turbocharger system for motorsports usage.

Please note: OEM turbocharger core Compressor/Turbine Housings are required for SM/R400 turbochargers.

SM400/R- OEM response and more Power everywhere

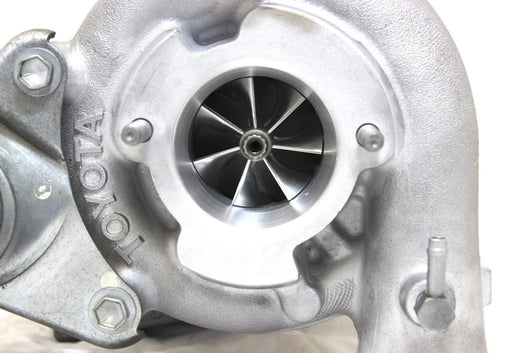

utilizing a turbocharger built off our SR/51 ball-bearing turbocharger CHRA, however utilizing a billet compressor wheel optimized for this application, this kit is designed to be a full bolt-on solution for your stock or lighty modified JZX100. Installation with your OEM exhaust manifold and compressor interface points is possible, and at boost levels below 12PSI it can be run on a stock ECU and fueling. Optimized for stock-like response and low-mid range torque, but without the reliability issues and poor top-end power of the OEM Turbo, this is a perfect option for a reliable street or drift Car. With the proper supporting mods however, this responsive option will still allow for 400BHP. This option requires an OEM CT-15B turbocharger core, as the existing compressor and turbine housing castings are CNC machined to suite the new ball bearing CHRA.

SM505/R- Perfect Power Characteristics.

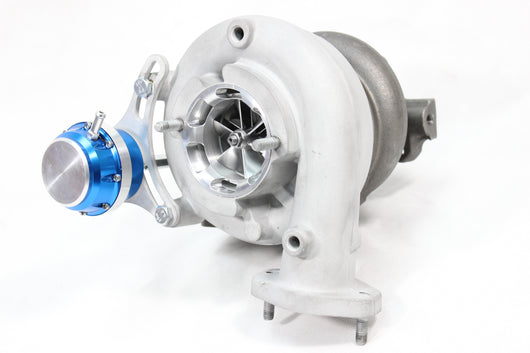

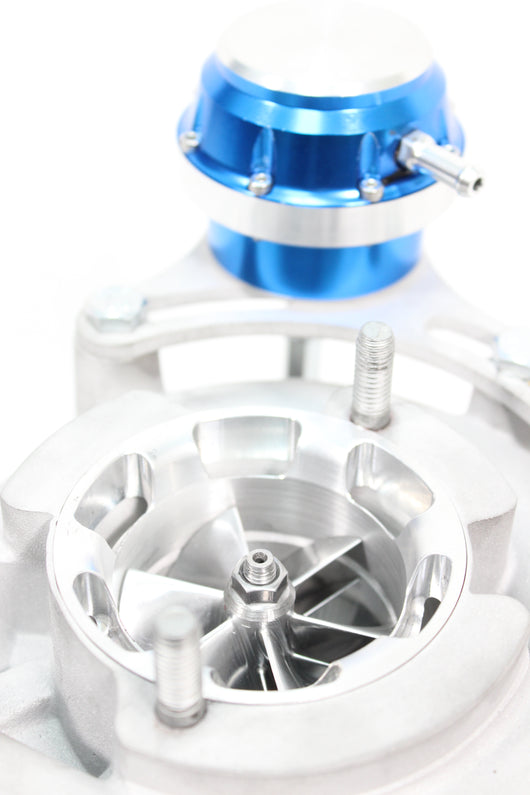

Our latest (fall '21) update of the SM500/R kit is built around our latest dual Ball Bearing CHRA with a new, larger .82A/R 55mm Turbine and all-new Billet Compressor Wheel Capable of supporting up to 55lb/min of airflow.  Improved rotor group sealing, with the addition of twin seal ring assemblies, ensure reliable sealing at both ends. An upgraded internal wastegate actuator is included, and can be calibrated for boost pressures between 14 and 20 PSI and features a larger diameter wastegate port and flapper. Usage with or without upgraded camshafts can still provide impressive results. Output up to 500BHP can be expected with supporting modifications, however we have found this power range is difficult to surpass with the OEM Exhaust Manifold. **Available with Either stock-fitment Compressor Housing or 3" intake option**

SM555/R - Next-Generation Features and Performance

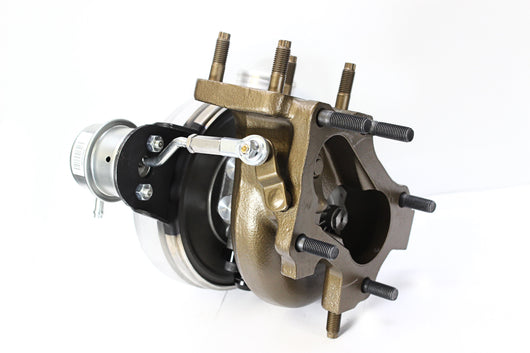

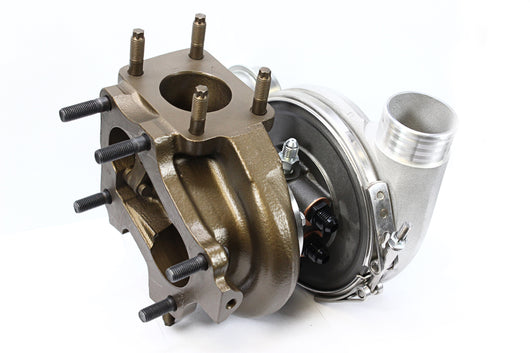

Our Highest-Power VVTi 1JZ bolt-on Turbocharger kit is built around our newly-released 58/LPR ball-bearing Turbocharger. This Compressor features a high-trim, low-Inertia 58mm Compressor Wheel with a high degree of blade backsweep. The result is up to 65lb/min of airflow, with increased efficiency at low-mid range Pressure Ratio and very good Surge resistance.  This turbo features an all-new CHRA and can be built around an either Iron or Aluminum Bearing Housing, reducing mass and allowing for the unit to be fully corrosion resistant. Improved cooling jacket and stainless heat shield improve durability at high temperatures, and twin piston rings on both sides of the rotor group increase sealing effectiveness. While this larger Compressor can support a significant increase in airflow, response is still surprising... with full boost available before 4kRPM.

**This kit comes standard with the intake and discharge tubing and couplers included to allow for deleting of the stock bolted outlet and J-pipe. OEM stock-fitment Compressor Housing also available **





 All of our turbochargers are built to order for your exact requirements and specifications and our current lead time is 2 weeks.  Please email info@spectrummotorsportssolutions.com for more information.

All prices are listed in USD.  Please email directly for inquiries and invoicing in CAD.
