SR20 Top Mount EWG Turbocharger Kit

SR20 Top Mount EWG Turbocharger Kit

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Our Turbocharger Kit for the SR20DET (S13/S14/S15) holds the distinction as being the first for Spectrum Motorsports.

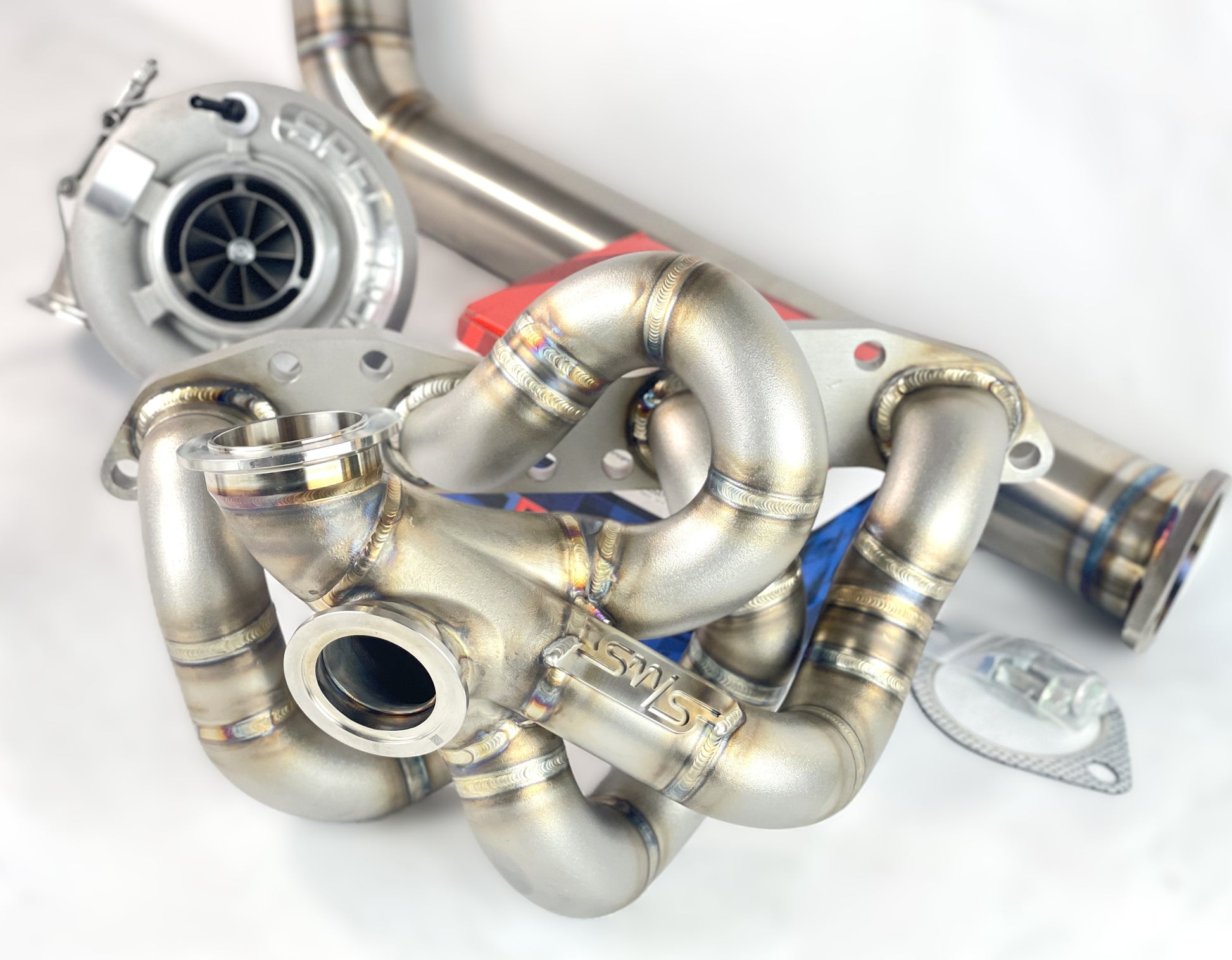

Our preferred configuration is built around our top mount, equal length exhaust manifold. CAD designed and featuring a Hypertune investment cast swept collector for improved durability and excellent wastegate flow characteristics.  This Manifold is paired with the latest versions of our small-frame turbochargers.

We can also build kits around any of our bottom-mount Exhaust manifold configuration, however these options are built to order and will have a longer lead time.

Ultimate power, delivery, and horsepower output for all motorsports and drift applications.

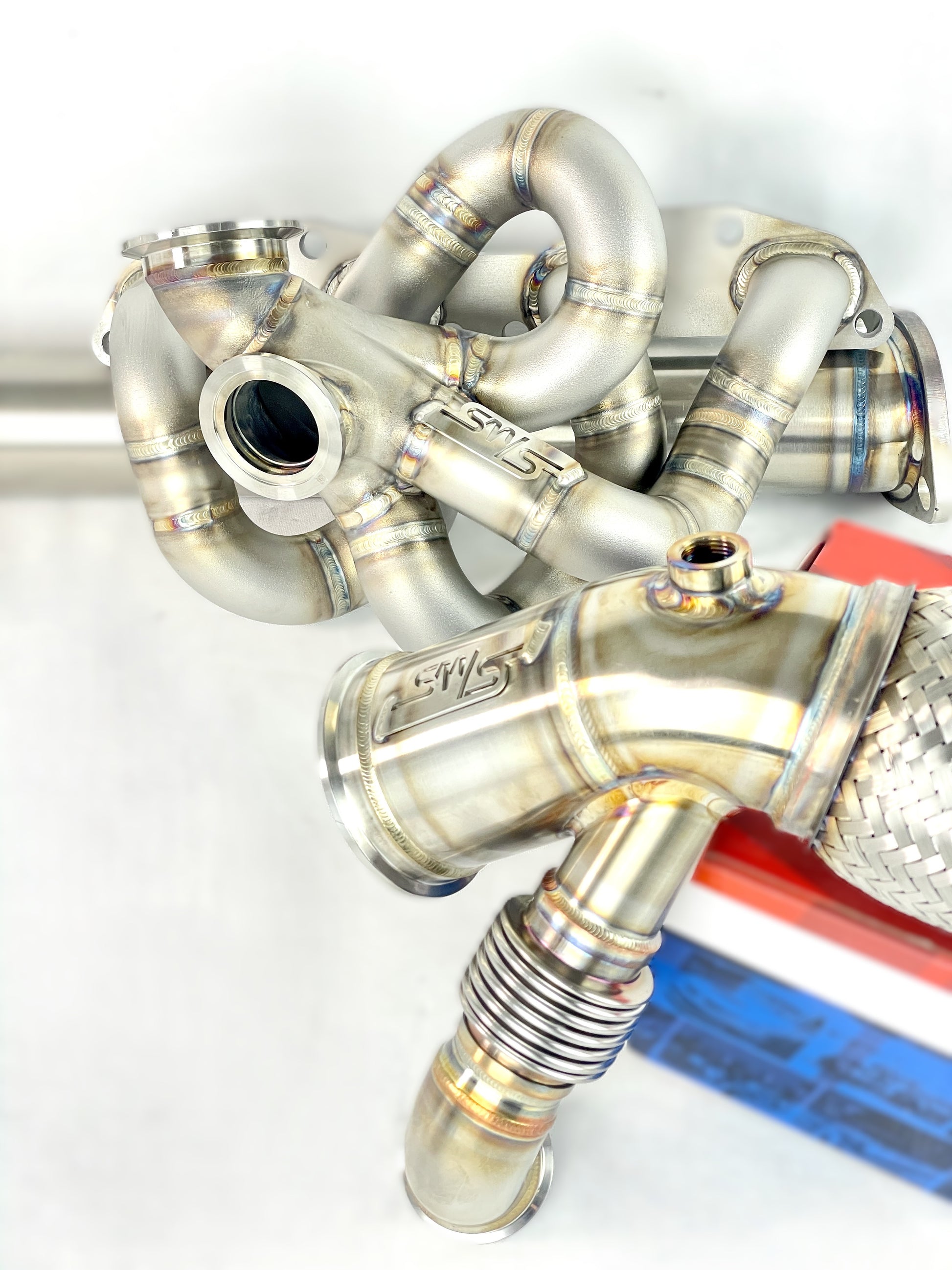

All of our in house exhaust manifolds are entirely stainless steel (including flanges), are back purged, and TIG welded by hand in our facility in Vancouver, BC, Canada.  Our careful consideration for runner length, collector design, orientation, wastegate placement, and turbine flow characteristics ensure optimal performance.

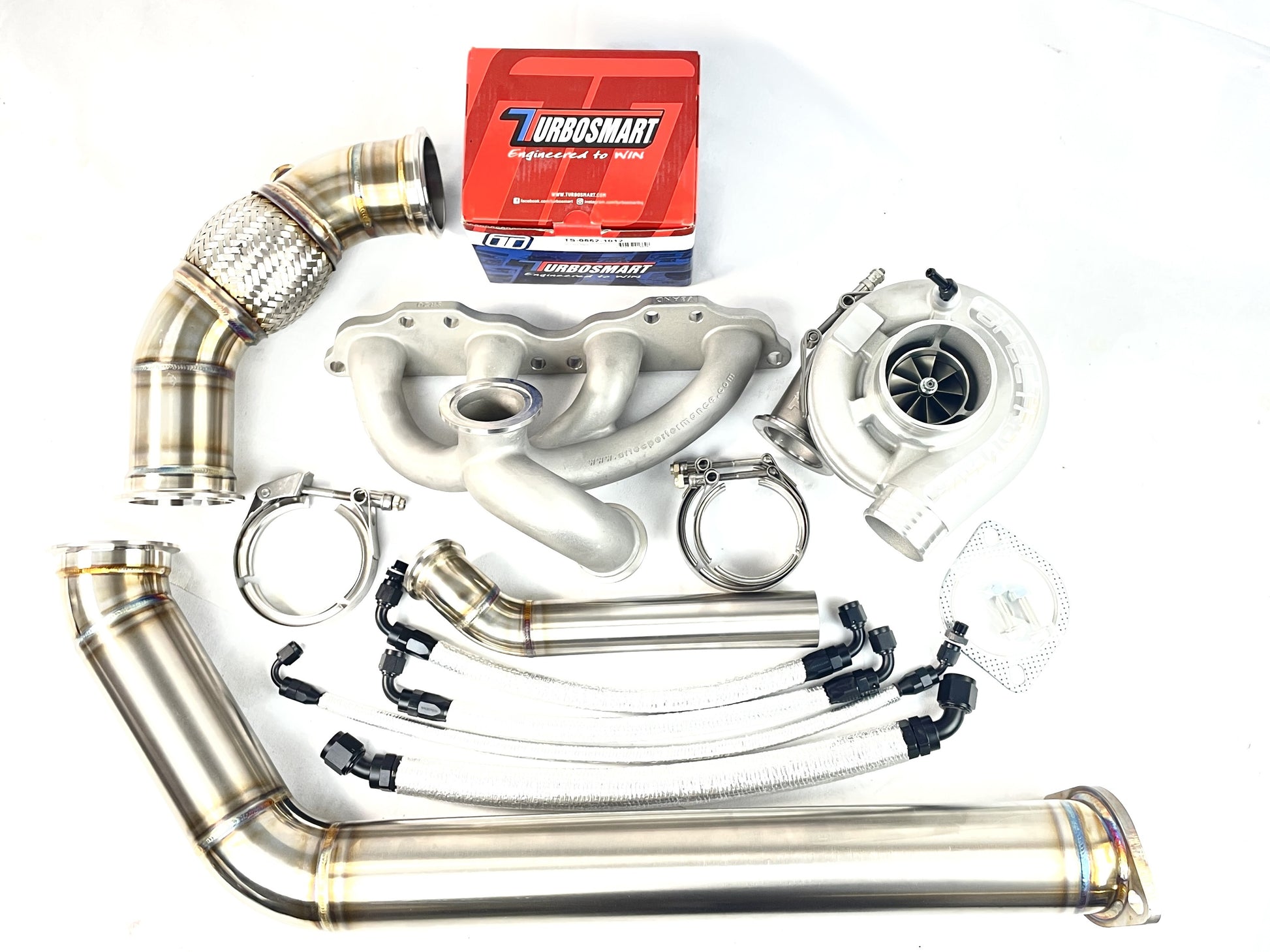

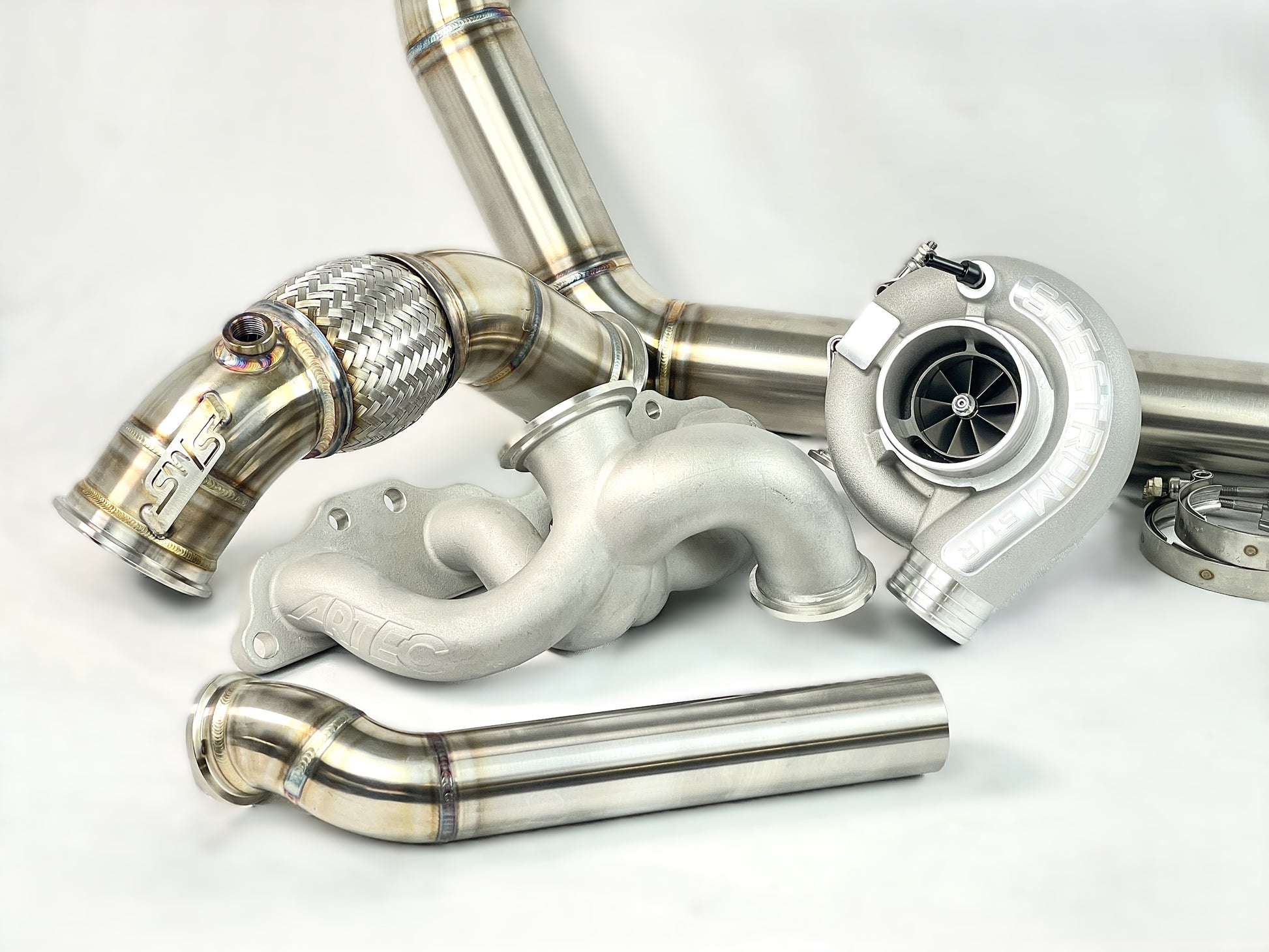

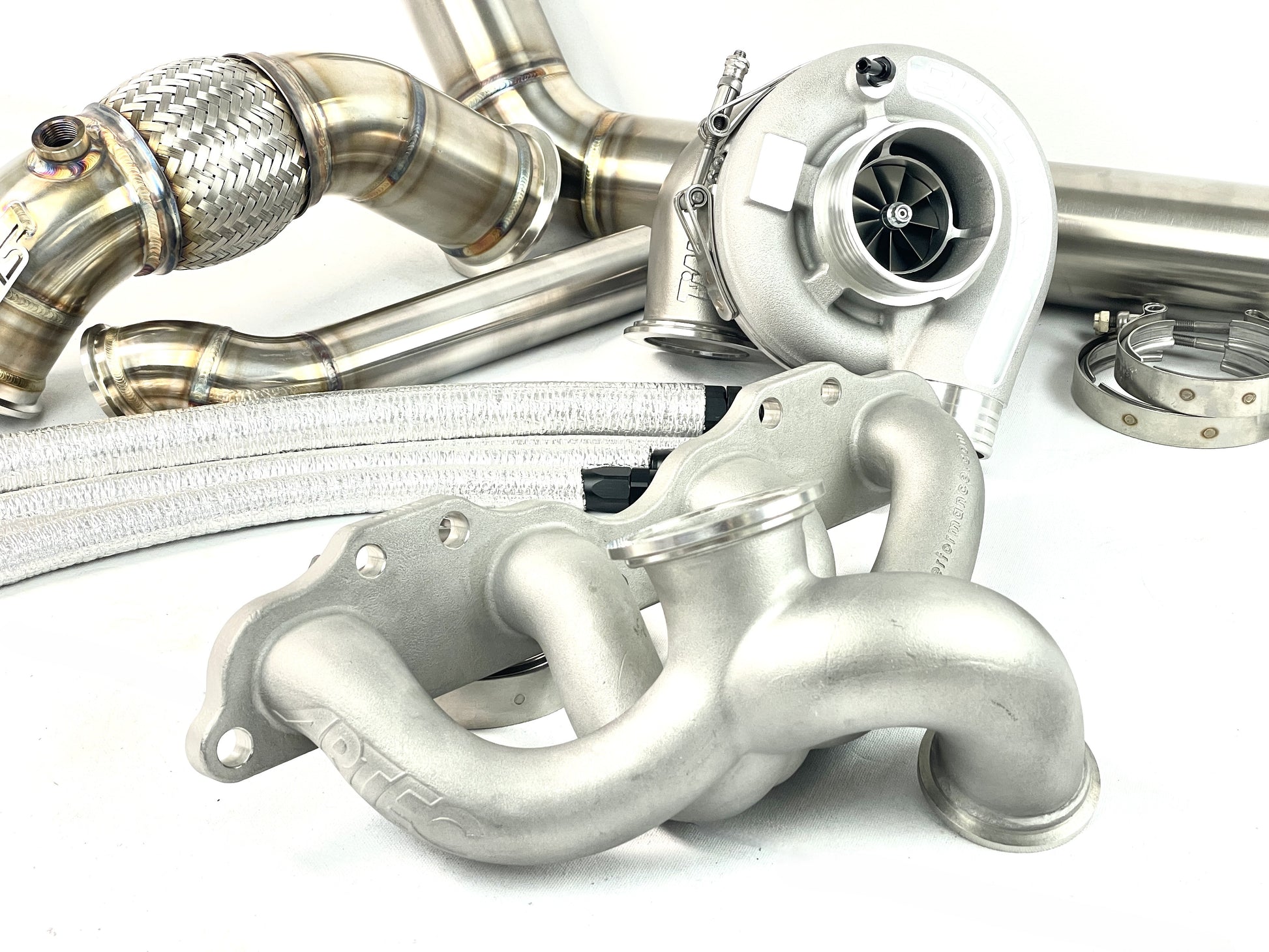

We have partnered with ARTEC PERFORMANCE and have designed a kit around their V-Band Top Mount Manifold with 45mm EWG port.

We have compressor and turbine maps available for all our turbo offerings, and can help with advanced compressor and turbine matching to any unique application.

Our turbocharger spec. selections are as follows:

Up to 350WHP - Spectrum 47/R

Up to 400WHP - Spectrum 48/R

Up to 450WHP - Garrett G25-550

Up to 450WHP -  Spectrum 51/R

Up to 500WHP - Garrett G25-660

Up to 550WHP - Spectrum 55/R

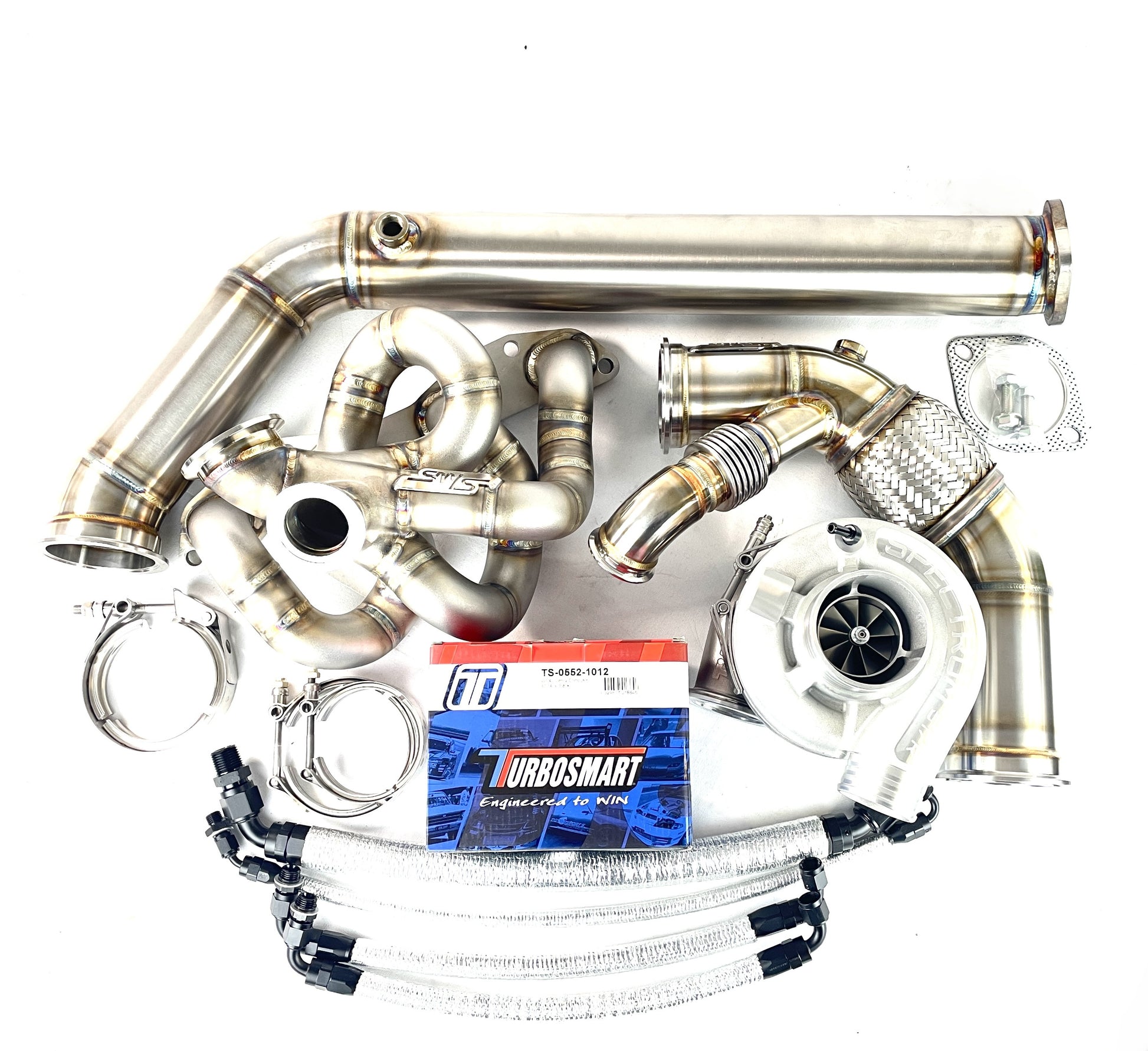

Our "Full Conversion" turbo kit allows you to upgrade your entire turbo system, and includes:

Exhaust Manifold

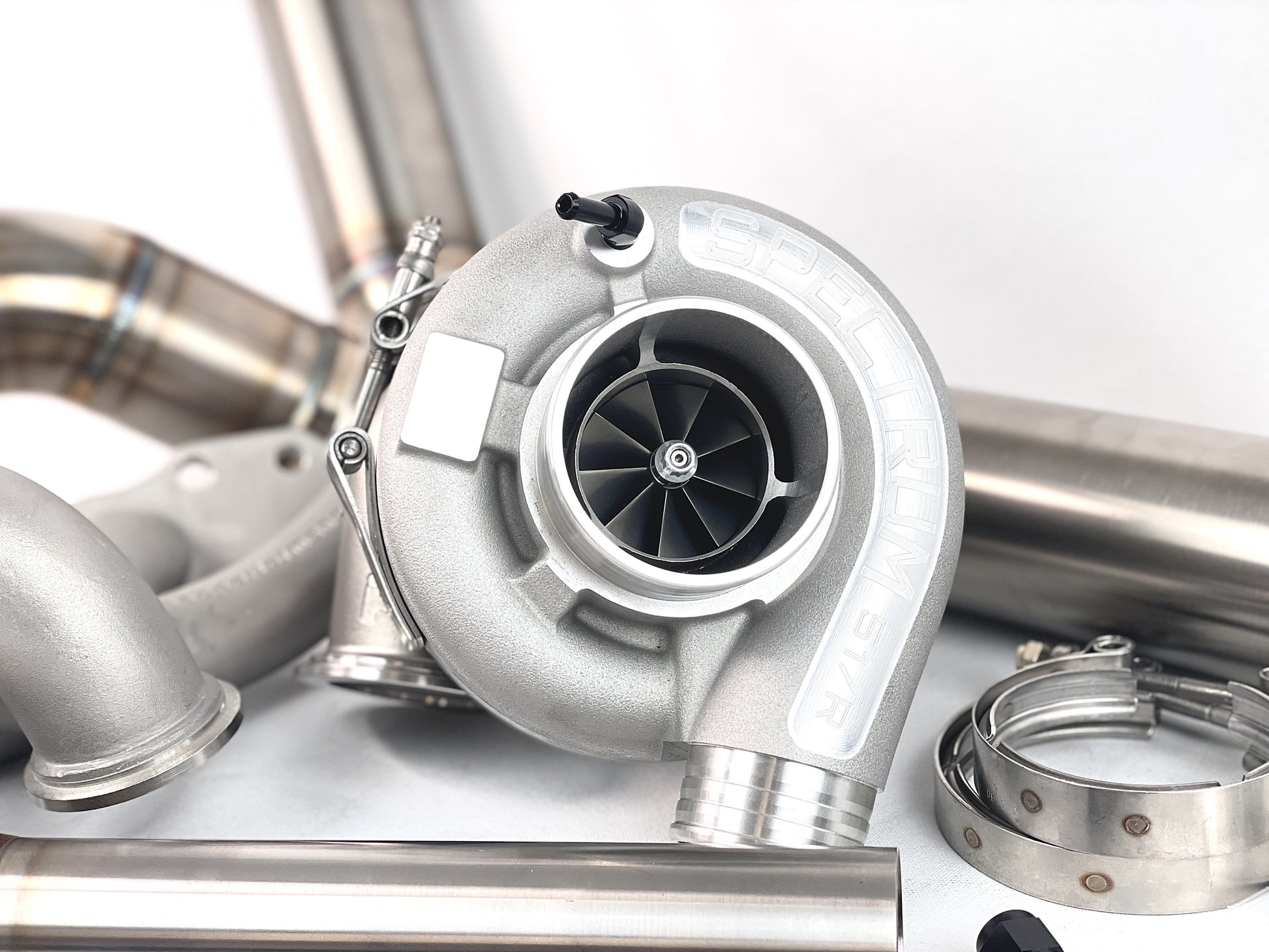

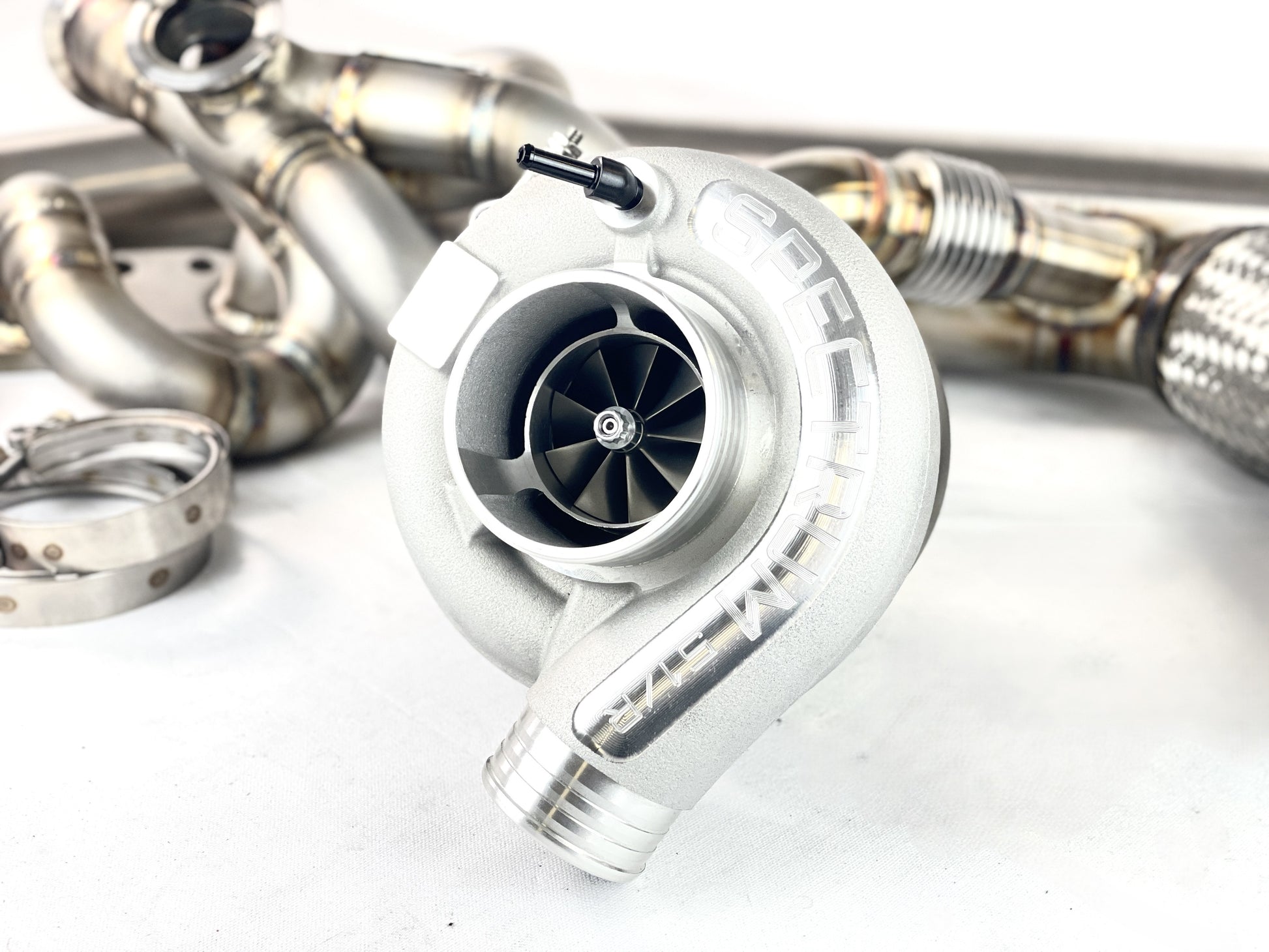

Dual ball bearing Turbocharger Custom Specified for SR20 (300 to 600bhp capable)
Stainless Investment-Cast V-band Turbine Housing
Turbosmart Gen V Wastegate
3" Stainless, 2-piece V-band Downpipe
Wastegate Screamer Pipe (Optional Wastegate Recirculation)
Oil and Water Line Installation Kit
Fasteners, clamps, gaskets, heat shielding etc,

Due to the many different intercooler and piping kit configurations used. intake or hot pipe kit is not included.

**Please note - Professional installation is recommended.  Fits RHD and LHD, however Heat Shielding is suggested for LHD applications. Requires updated crankcase breathers and may need a slight adjustment to PS reservoir bracket depending on chassis**.

All of our turbocharger kits are built to order for your exact requirements and specifications and our current lead time is 2-4 weeks.  Please email info@spectrummotorsportssolutions.com for more information.
